Resolved: OEM DB target is showing down status though connection test is successful.

Dear Readers,

Hope you are doing well & enjoying my recent articles!!!

Recently I faced strange issue with one of my Database instance target on OEM. It was showing down status, though connection test was successful with no errors:

Target DB version: 19.8
OMS version: 12.1.0.5
OEM Agent version: 12.1.0.5

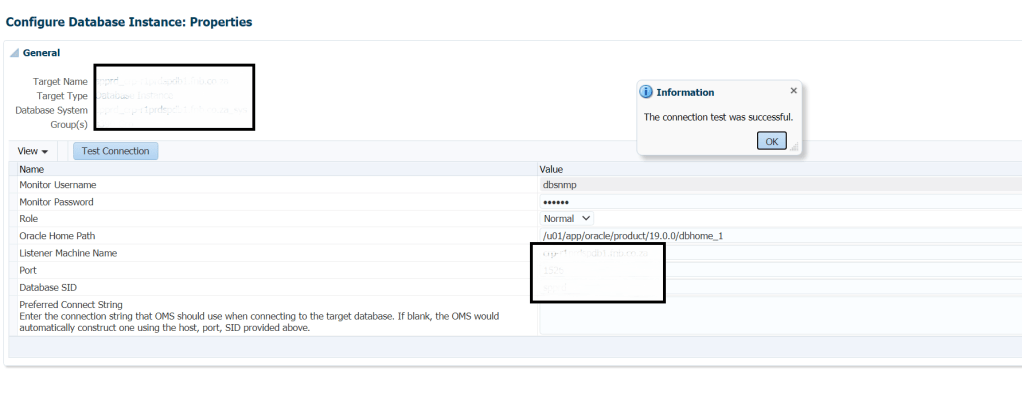

PFA screenshots explaining exact issue:

Even I tried removing & re-adding target without any success.

I thought of running few commands on agent side to get more information about the issue I was facing:

emctl config agent listtargets

Okay I can see my target.

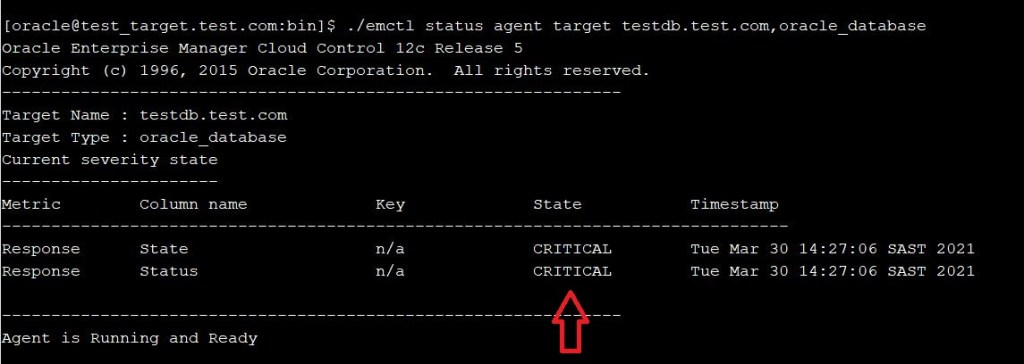

emctl status agent target testdb.test.com,oracle_database

This confirms there is issue with my target.

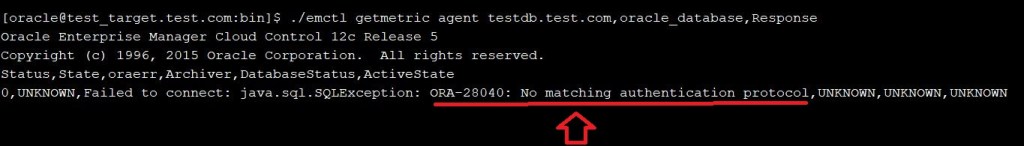

emctl getmetric agent testdb.test.com,oracle_database,Response

Okay now I can see what is the issue. This is compatibility issue. My OEM agent is 12.1.0.5 & has difficulty in communicating with 19C DB target.

I added below 2 parameters in sqlnet.ora of my 19C DB Oracle home as a workaround, so it will allow OEM agent connection.

SQLNET.ALLOWED_LOGON_VERSION_SERVER=8
SQLNET.ALLOWED_LOGON_VERSION_CLIENT=8

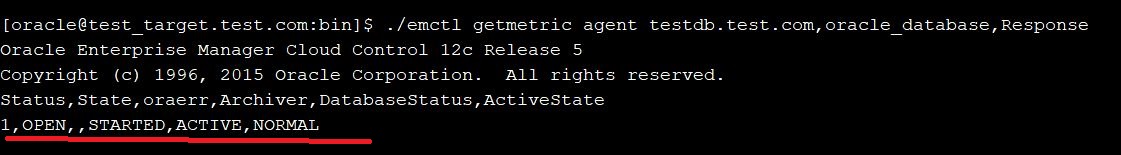

After adding this parameters, I was able to resolve the issue:

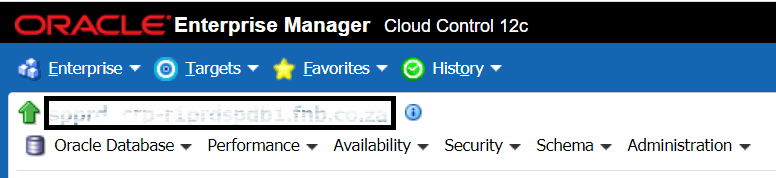

Now I can see my target is up on OEM OMS GUI too.

Hope u will find this post very useful.

Cheers

Regards,

Adityanath
