Oracle schema comparison using “dbForge Compare Bundle”

Dear Readers,

Recently I was working on one of the projects wherein a requirement was to compare two DB schemas (Both structure and data) & synchronize it. Requirement was as follows:

  1. Current application version is 1.0. It is using schema S_APPS in Oracle database as a backend.
  2. New upgrade pack was given by vendor for an application version 1.1. This unbundled into schema S_APPS_NEW.
  3. Once application is upgraded to 1.1, we need to compare two schemas S_APPS & S_APPS_NEW. & S_APPS has to be synchronized with S_APPS_NEW for all structural changes & data changes.

When I googled bit about it, I found a very effecient & lightweight tool called DEVART’s dbForge. More details can be found on below link:

Compare Bundle for Oracle

I just installed trial version for the same to work on test database & I found its really helpful for completing my assignment. This is licensed tool & you can connect with DEVART for pricing details.

PFB Small demo for this tool usage:

Schema comparison:

This section will cover identifying & applying structural changes in two schemas. Start application named “dbForge Schema Compare for Oracle”.

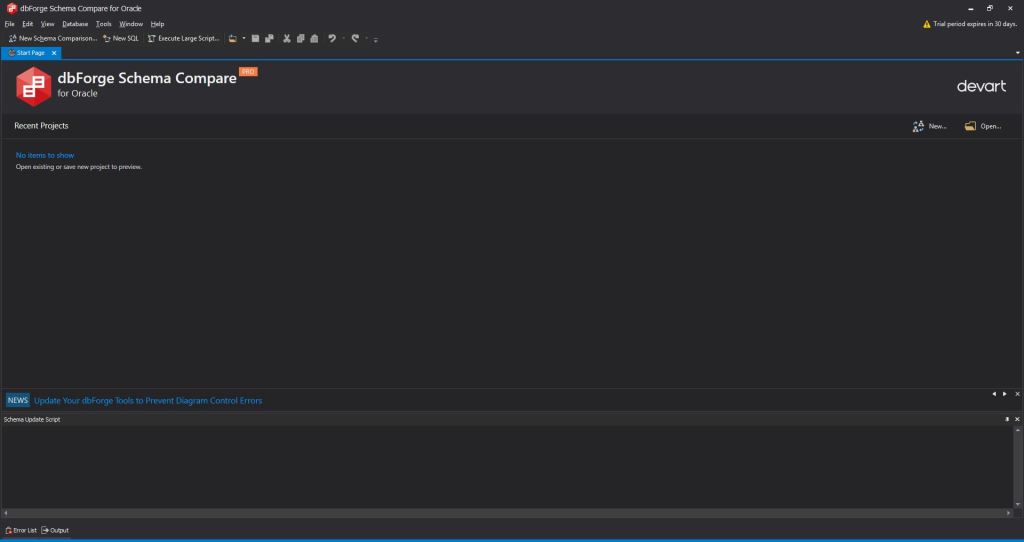

Start Page:

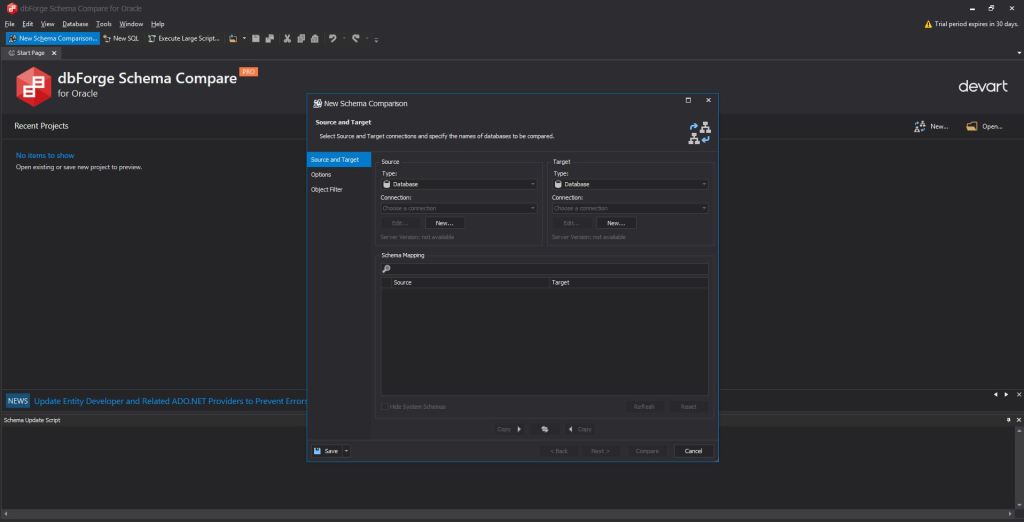

Click on New Schema Comparison:

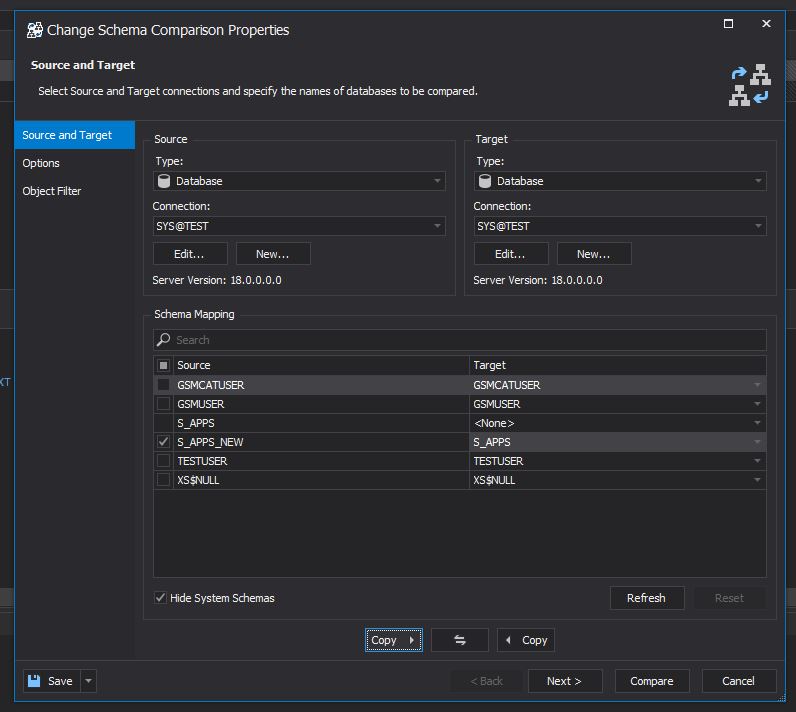

Specify Source & target schema correctly as given below. I am comparing S_APPS_NEW with S_APPS & Click on compare button:

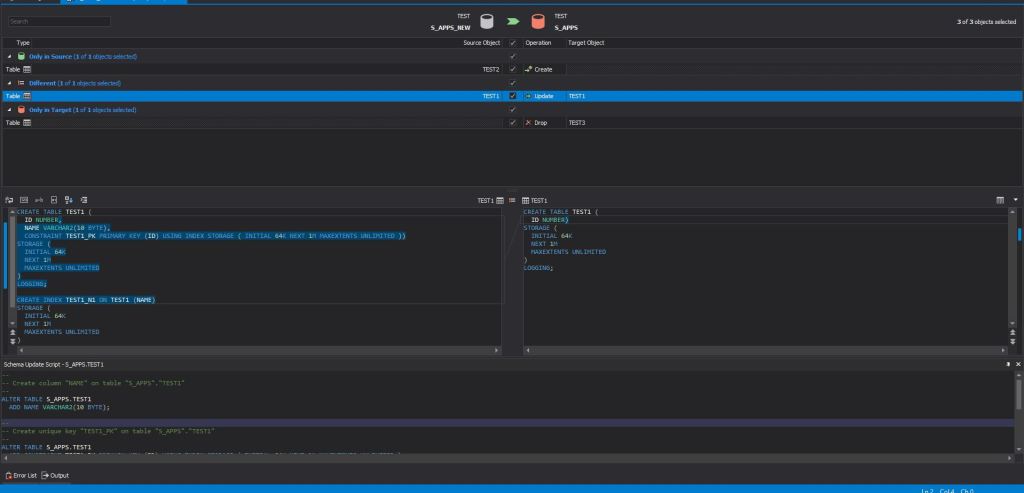

Now below screen shows schema comparison report. Like object only present in S_APPS_NEW that’s needs to be created. Different object between two schema that needs alteration & Additional object present in target which needs to be dropped:

Now as per requirement I need to only apply changes from schema S_APPS_NEW to S_APPS. So I unchecked ‘DROP’ section as given below. See RED box:

Now you can use synchronize using below option, which gives 3 options.

  1. Opening synchronization script on editor.

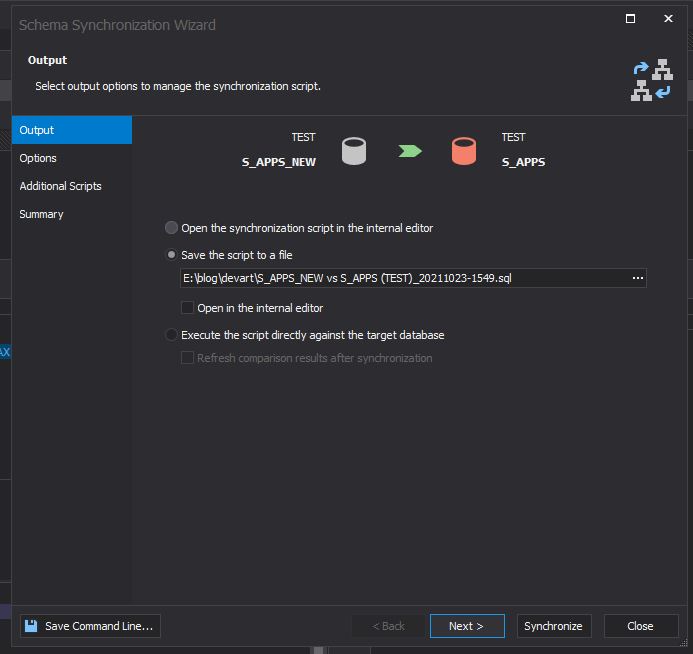

  2. Saving synchronization script as SQL file.
  3. Running synchronization against target schema.

I would strongly recommend using 1st or 2nd option, review it, then only go ahead with option 3.

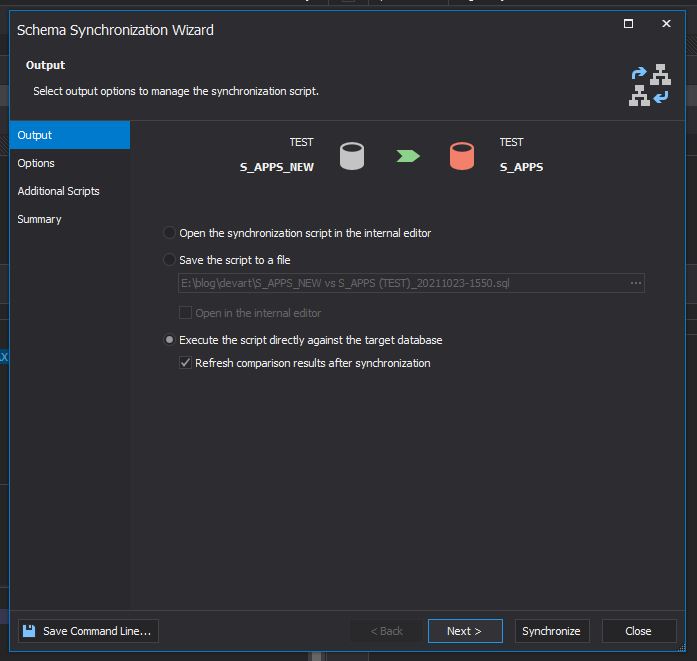

Once I am happy with review of step 2. I can now use third option to actually run it.

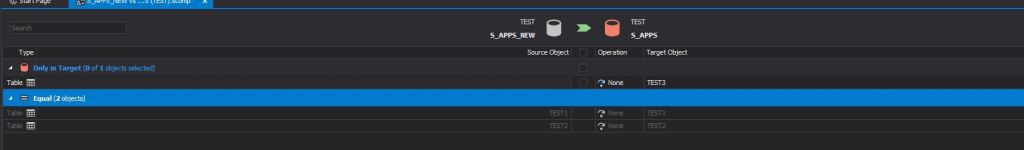

Now I can see schema objects are in sync with one additional table in target schema.

Data comparison:

Once schema structures are in sync. We can go ahead with DATA sync. This section will cover identifying & applying DATA changes in two schemas. Start application named “dbForge Data Compare for Oracle”.

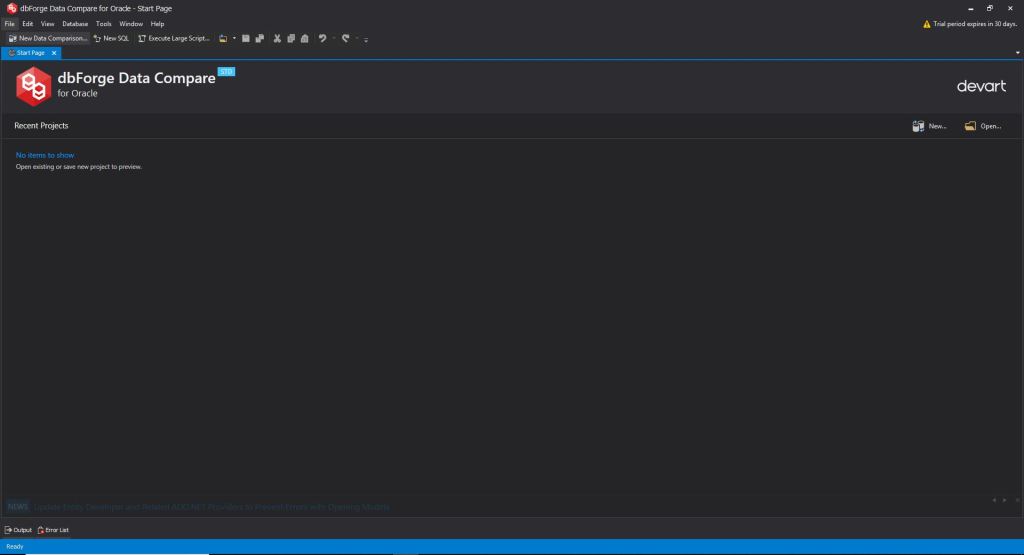

Start page:

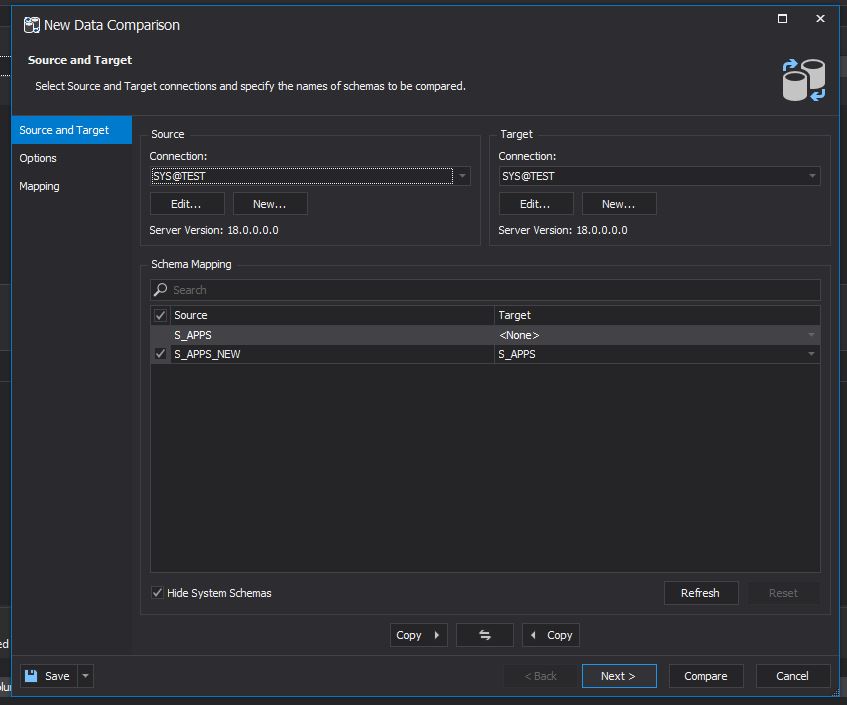

Click on New Data Comparison. Specify Source & target schema correctly as given below. I am comparing S_APPS_NEW with S_APPS & Click on compare button:

You can use synchronization using 3 options, same as that of schema comparison.

  1. Opening synchronization script on editor
  2. Saving synchronization script as SQL file
  3. Running synchronization against target schema.

I would strongly recommend using 1st or 2nd option, review it, then only go ahead with option 3.

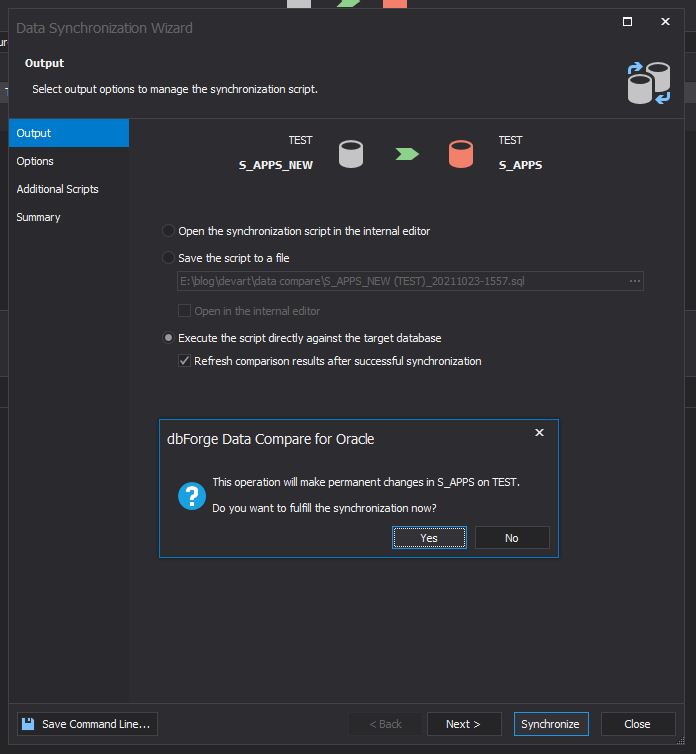

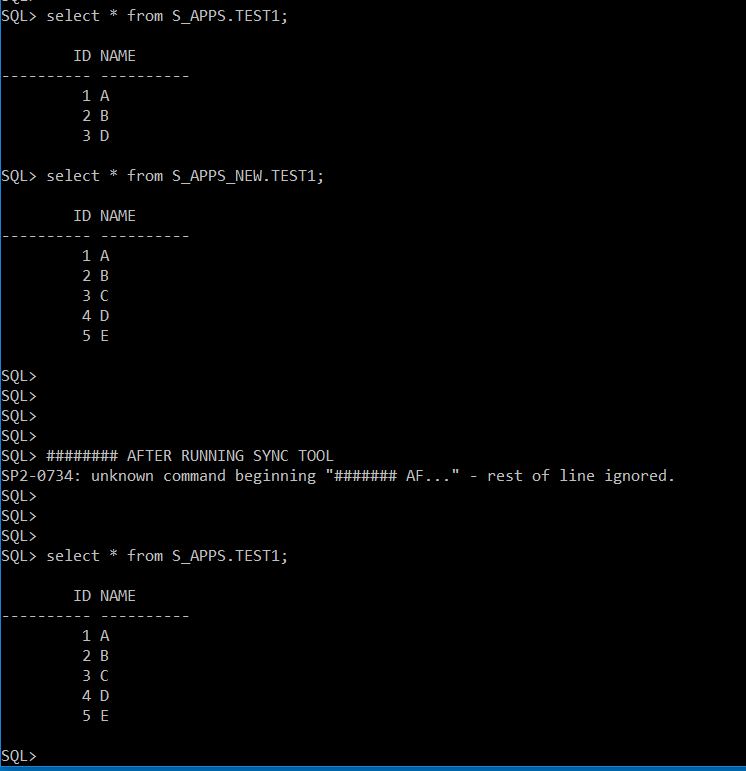

Once using option 3, I can data is synced between 2 schemas.

Hope u will find this post very useful.

Cheers

Regards,
Adityanath
