Deploying Oracle E-Business Suite plug-in or Oracle Application Management Pack into ORACLE OEM 12C

This post will provide u steps to deploy Oracle E-Business Suite plug-in into ORACLE OEM 12C which is also known as Oracle Application Management Pack for Oracle E-Business Suite.

The Oracle Application Management Pack for Oracle E-Business Suite extends Oracle Enterprise Manager 12c Cloud Control to help monitor and manage Oracle E-Business Suite systems more effectively. The pack integrates Oracle Applications Manager with Cloud Control to provide a consolidated, end-to-end Oracle E-Business Suite management solution. The pack can be used to manage both Oracle E-Business Suite Release 11i systems and Release 12 systems.

Before proceeding with deployment u first need to download “Oracle Application Management Suite for Oracle E-Business Suite 12.1.0.3.0” from https://edelivery.oracle.com. This will be a zip file named :V46070-01.zip & with size 433MB.

Now u r ready for OAM suite deployment:


oracle@rmb-zdr-oem01:$export EMCLI_STATE_DIR=/export/home/oracle/plugins
oracle@rmb-zdr-oem01:$export PATH=$PATH:$EMCLI_STATE_DIR
oracle@rmb-zdr-oem01:$ /u01/oracle/12C/middleware/oms/bin/emcli setup -dir=$EMCLI_STATE_DIR -url=https://oracle@rmb-zdr-oem01:7799 -user=sysman
Oracle Enterprise Manager 12c Release 4.
Copyright (c) 1996, 2014 Oracle Corporation and/or its affiliates. All rights reserved.
The configuration directory "/export/home/oracle/plugins" may not be local. See the "dir" option in the help for the setup command.
Do you want to continue using this directory? [yes/no] yes
Enter password:

This process should successfully complete giving status : Emcli setup successful.

Extract V46070-01.zip which will give u this file : ~/software/EBS-PlugIn/12.1.0.3.0/12.1.0.3.0_oracle.apps.ebs_2000_0.opar. Now update this plugin into OEM.


oracle@zbx-oem01:$ /u01/oracle/12C/middleware/oms/bin/emcli import_update -file="/export/home/oracle/plugins/software/EBS-PlugIn/12.1.0.3.0/12.1.0.3.0_oracle.apps.ebs_2000_0.opar" -omslocal
Processing update: Plug-in - Enterprise Manager for Oracle E-Business Suite consists of System Management and Change Management Feature Sets
Successfully uploaded the update to Enterprise Manager. Use the Self Update Console to manage this update.

Now U need to use OEM/OMS console to deploy plugin. PFB screenshots for the same: Go to Setup => Extensibility => Plug-ins:

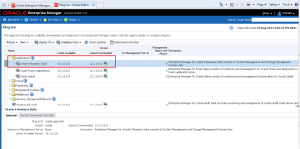

ebiz pluggin



ebiz pluggin

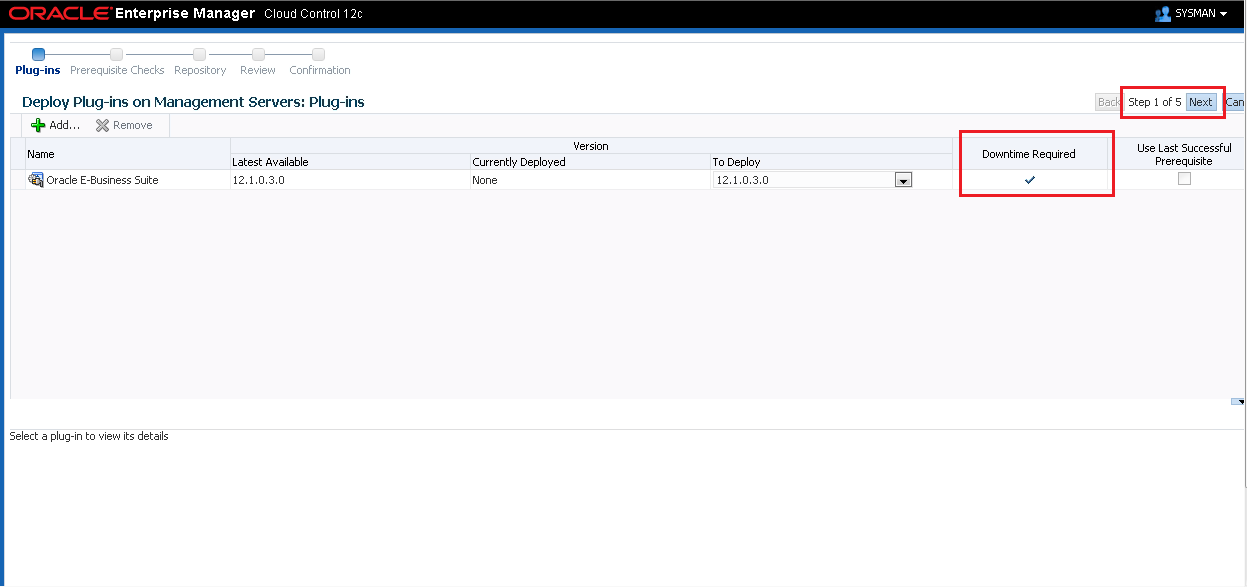

ebiz pluggin2

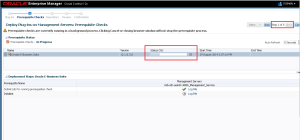

ebiz pluggin3

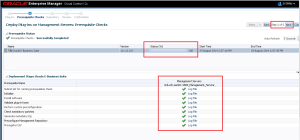

ebiz pluggin4

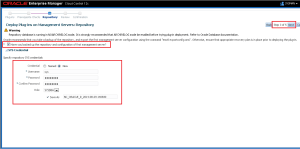

ebiz pluggin5

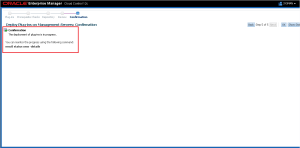

ebiz pluggin7

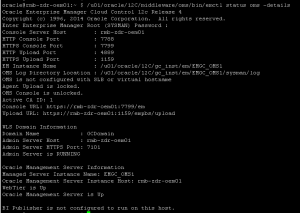

After this U need to monitor progress using command : emctl status oms -details:

Once everything is back up & running, U can log out and login to OEM console to have deployed Oracle E-Business Suite plug-in 🙂

ebiz plugin screenshots status

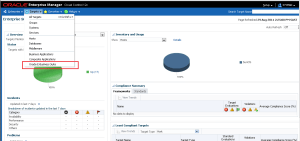

ebiz pluggin9

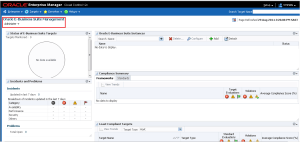

ebiz pluggin10

Hope so u will find this post very useful 🙂

Cheers

Regards,

Adityanath

23 replies

  1. does the plugin only need to be deployed to the OMS or does it need to be deployed to the target agent also? Gracias!

    • Hi David,

      We need to install plugin on agent host too!!

      Please refer following MOS Note : Step by Step to Install New AMP Plugin – Oracle E-Business Suite Plug-in 12.1.0.1.0 on top of Grid Control 12c (Doc ID 1463040.1)

      Hope this will help u!!

      Regards,
      Adi

  2. Hi Adityanath,

    This is very nice. Infact it helped a lot.

    Can you please share how to proceed further inorder to manage the EBS targets
    for eg: In the Oracle E-Business Management Screen it there is +Add to add the instance..

    Can you please share the steps that should be done after deploying plugin..

    Thanks,
    Prasad

    • Hey Prasad,

      Thanks for visiting and appreciate your feedback. 🙂

      Can you please refer following MOS Notes :

      Step by Step to Install New AMP Plugin – Oracle E-Business Suite Plug-in 12.1.0.1.0 on top of Grid Control 12c (Doc ID 1463040.1)
      Getting Started with the Application Management Pack for Oracle E-Business Suite (Releases 2.0.0-2.0.2) (Doc ID 394448.1)

      Regards,
      Adi
